Build a 34" Sailboat for beginners Full Size Printed Plan and Building article
Description
Full Size Printed Plan and building article
No material
vintage plan from 1967

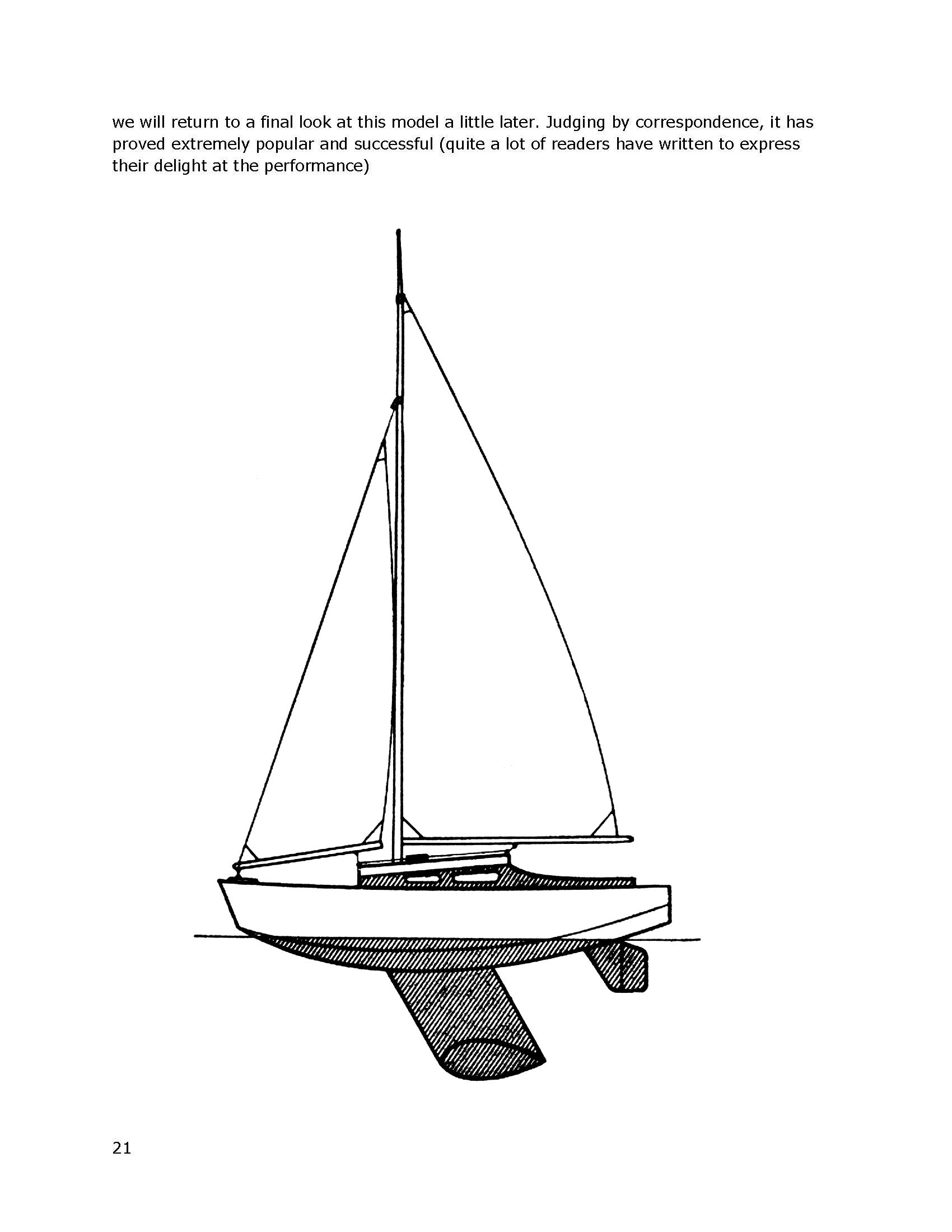

STARLET
Sailboat for beginners
Full size printed plan on a sheet 35" x 24" 20lb bond material list on plan
Thirty one page article (Not all shown) on construction with photos and illustrations
0.A. 34"
L.W.L. 29.2"
BEAM 11"
DISP. 10.7 LBS
LEAD 5.0
SAIL AREA 465 SQ. INS.
You may update to newer radio control equipment
Vic Smeed
It should be mentioned that the model as equally suitable for free sailing, with, naturally, an increase in the lead weight, and details of the necessary differences in fittings etc. will be given in due course.
For simplicity, cheapness, and speed of construction a hard chine boat was an obvious choice, with a symmetrical bulb keel to reduce the bother of casting lead to a minimum.

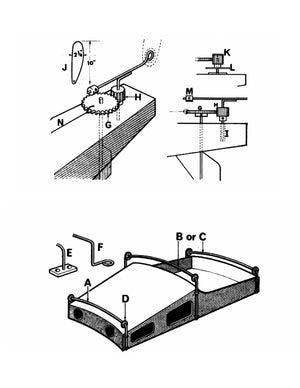

The method of construction may not be entirely orthodox for a yacht, but it is straightforward and simple. We have incorporated a simple cabin, the purposes of which are to enhance appearance and to raise the hatch well above deck level; there is also the rather cunning support for the sheet lead eyes, which turn the sheets through less than right-angles and keep them as short as possible. The boat looks well without the cabin, so that it can be classed as an optional extra.
Limited quantity
Thank you for Looking Rose
