Full size printed plan 1/12 SCALE, LOTUS Mk. IX FOR .03 - 09 CI or .5 - 1.5 CC MOTORS, RAIL OR CABLE TRACK

Full size printed plan and article

No material, Plans only

THIS PLAN IS FROM 1956

LOTUS Mk. IX

ONE of the top-flight sports car makers, with a brilliant record of competition successes in recent years is the Lotus Engineering 'Company whose handsome Mk. IX provides the prototype for this simple model.

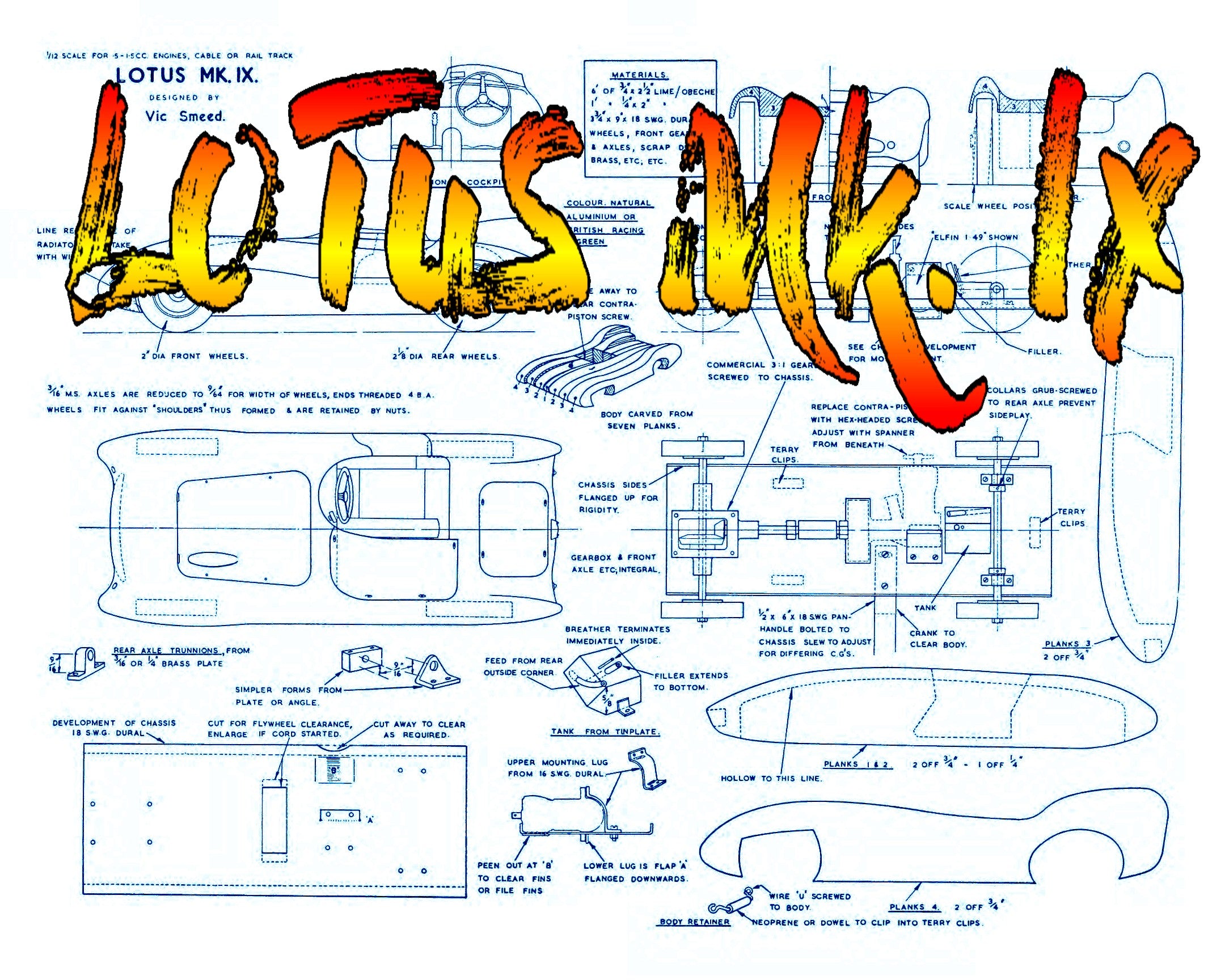

Full Size plan on a 29" x 22" sheet

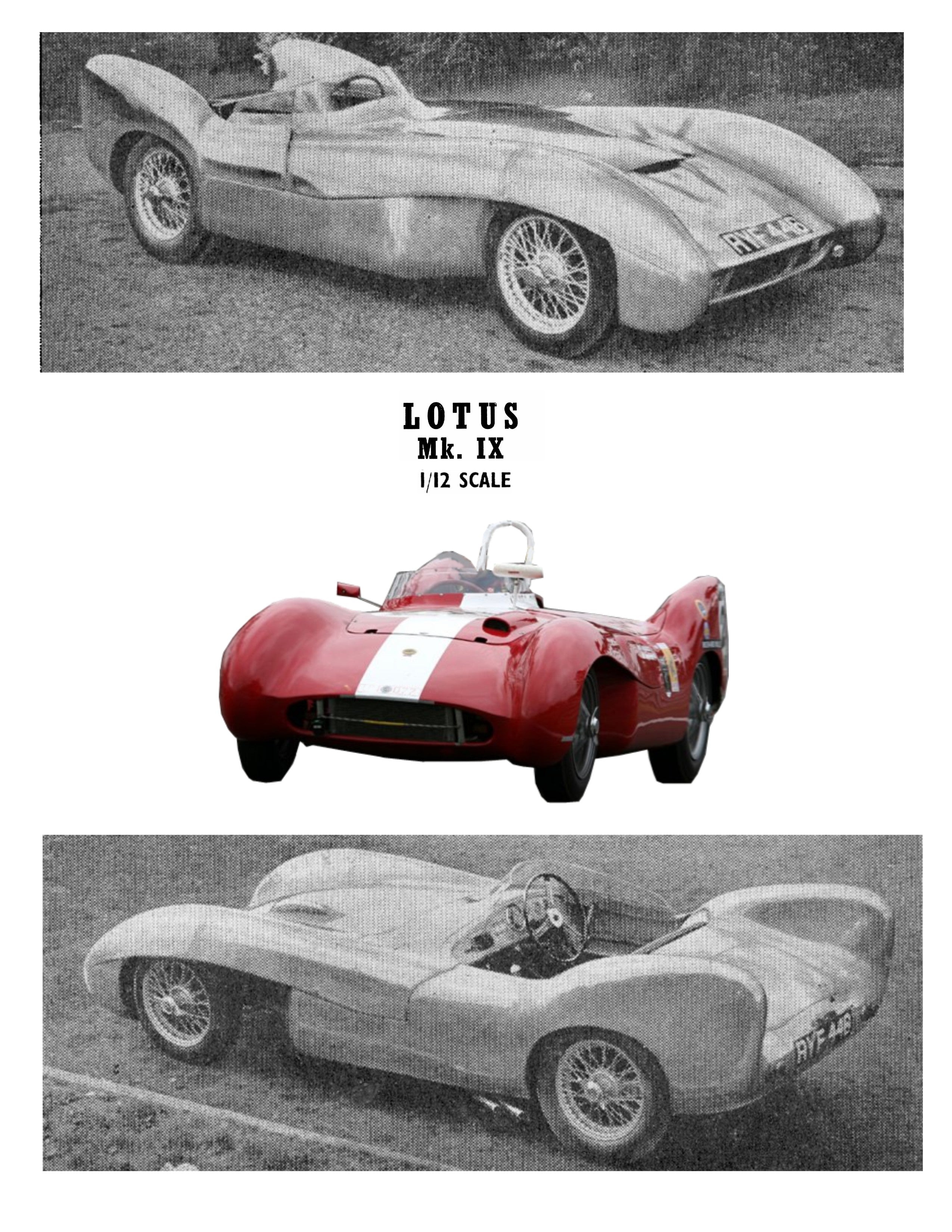

Two pages of building notes and photos

1/12 SCALE,

Length 11 ½”

Width 4 ¾”

FOR .03 - 09 CI or .5 - 1.5 CC

MOTORS, RAIL OR CABLE TRACK

   We chose 1/12 scale for this relatively small car for several reasons, first of which was that this is one of the two scales standard for rail racing. Secondly, many builders anxious to run a "tennis court special" require a model small enough for even a .5 c.c. engine; thirdly this size model with a 1 ½ c.c. engine is usable on a normal cable track. Lastly, but by no means of least importance suitable commercial parts are available to help those with limited facilities.

   As drawn, the model is for tethered operation, but the only modifications required for rail work are the addition of zonkers to fit your particular track and possibly the inclusion of a clutch in the transmission, if your local rules call for this.        .
