Full Size Printed Plan and Article for an Exciting 26" Hydroplane

Full Size Printed Plan and Article for an Exciting Hydroplane

SQUARE ONE

Length 26 in

Engine .21 or 3.5cc

FOR 2-FUNCTION R/C

SIMPLE CONSTRUCTION, QUICK TO BUILD

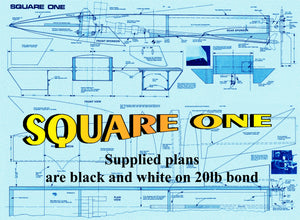

Full size Printed plans on a sheet 30" x 24" 20lb bond

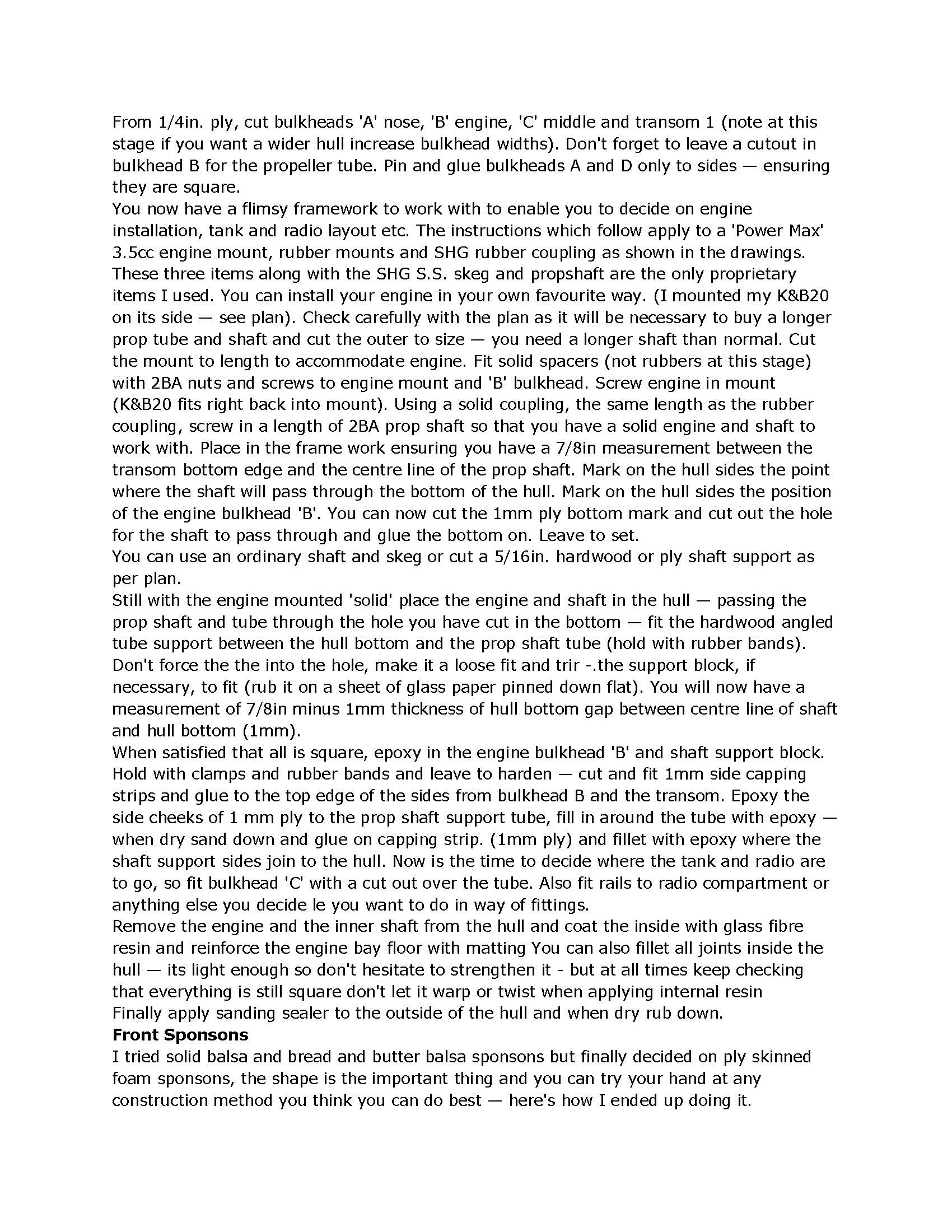

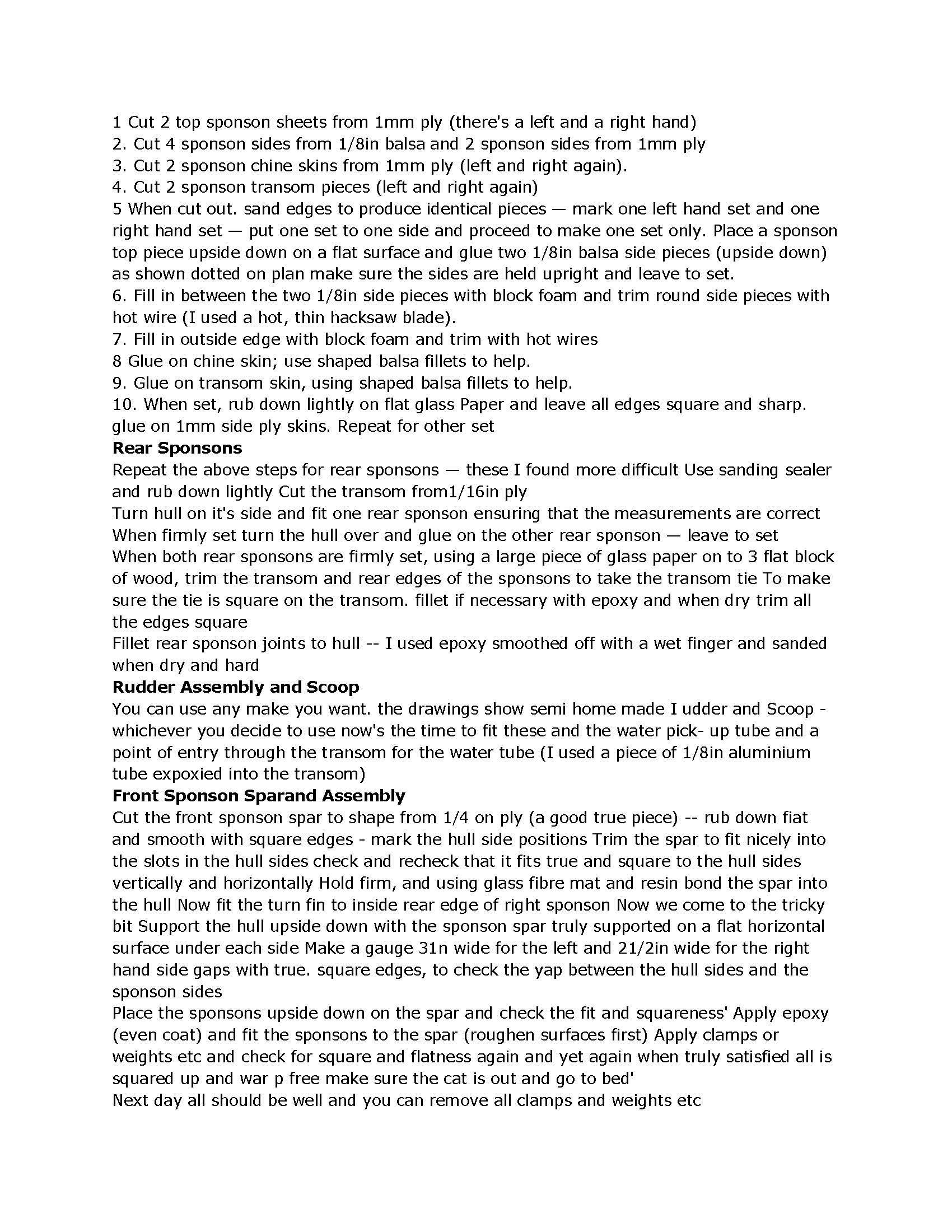

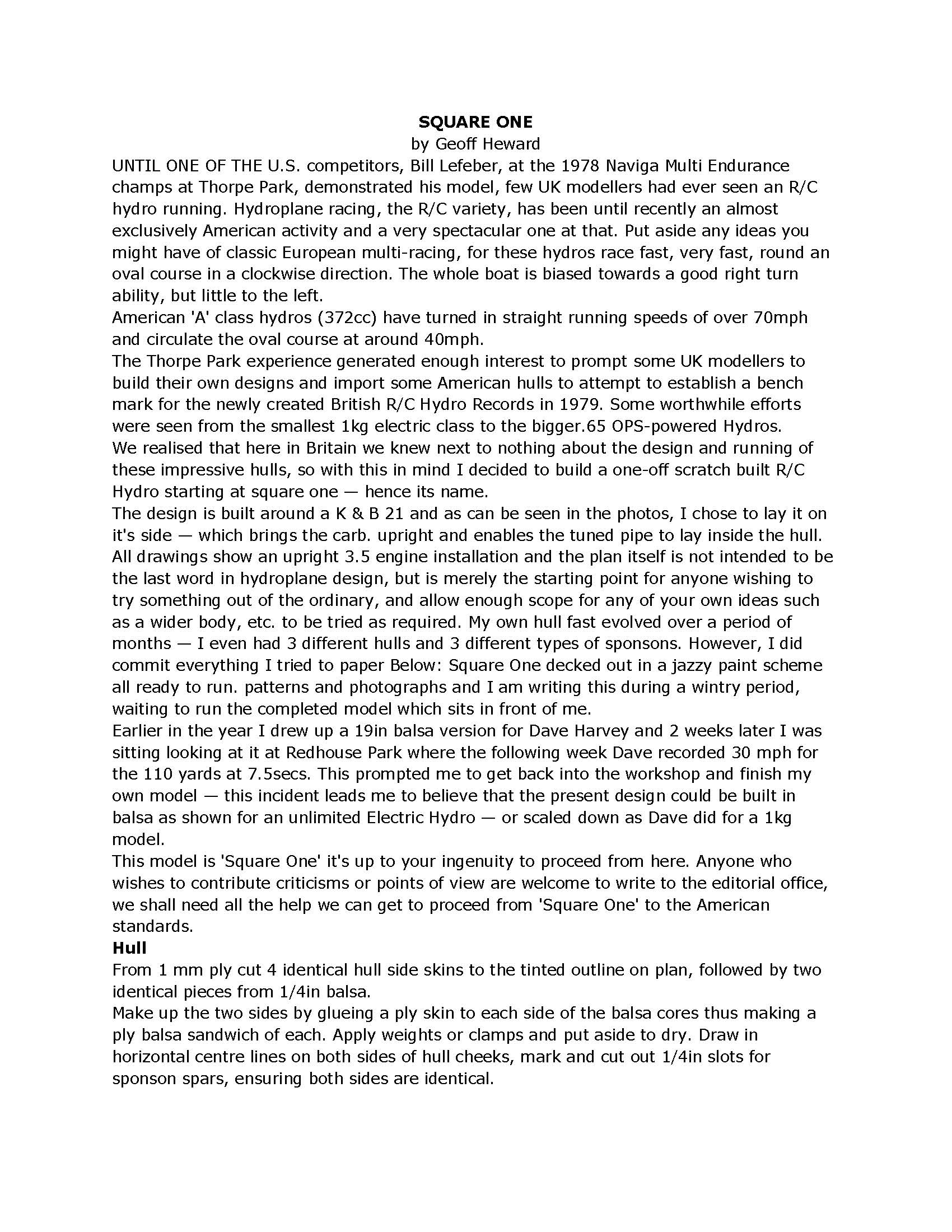

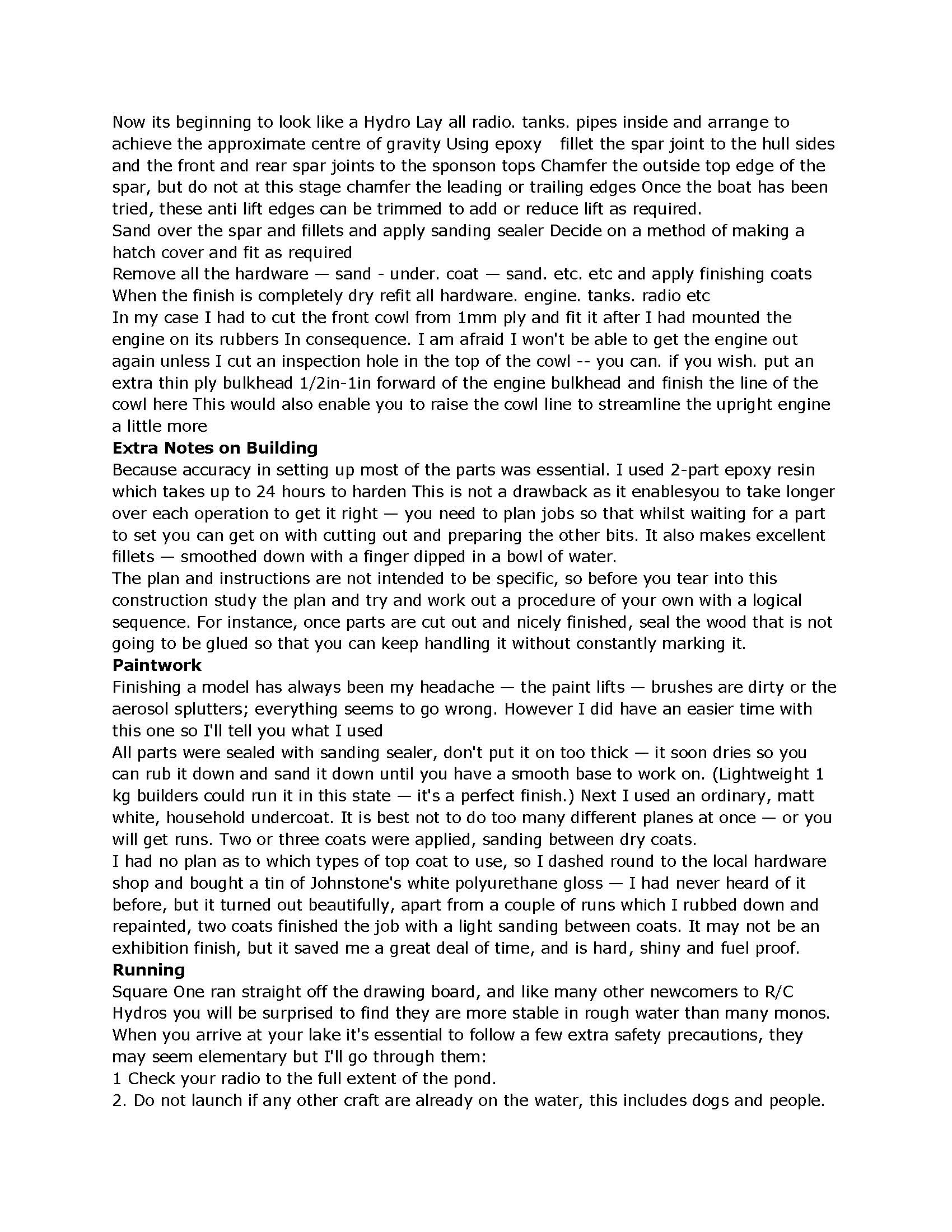

Five pages of building notes

BY GEOFF HEWARD

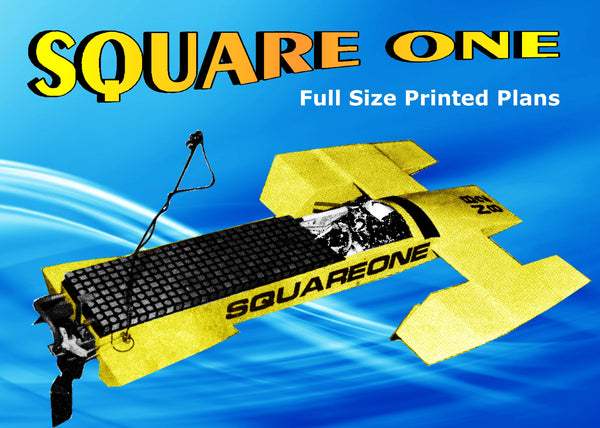

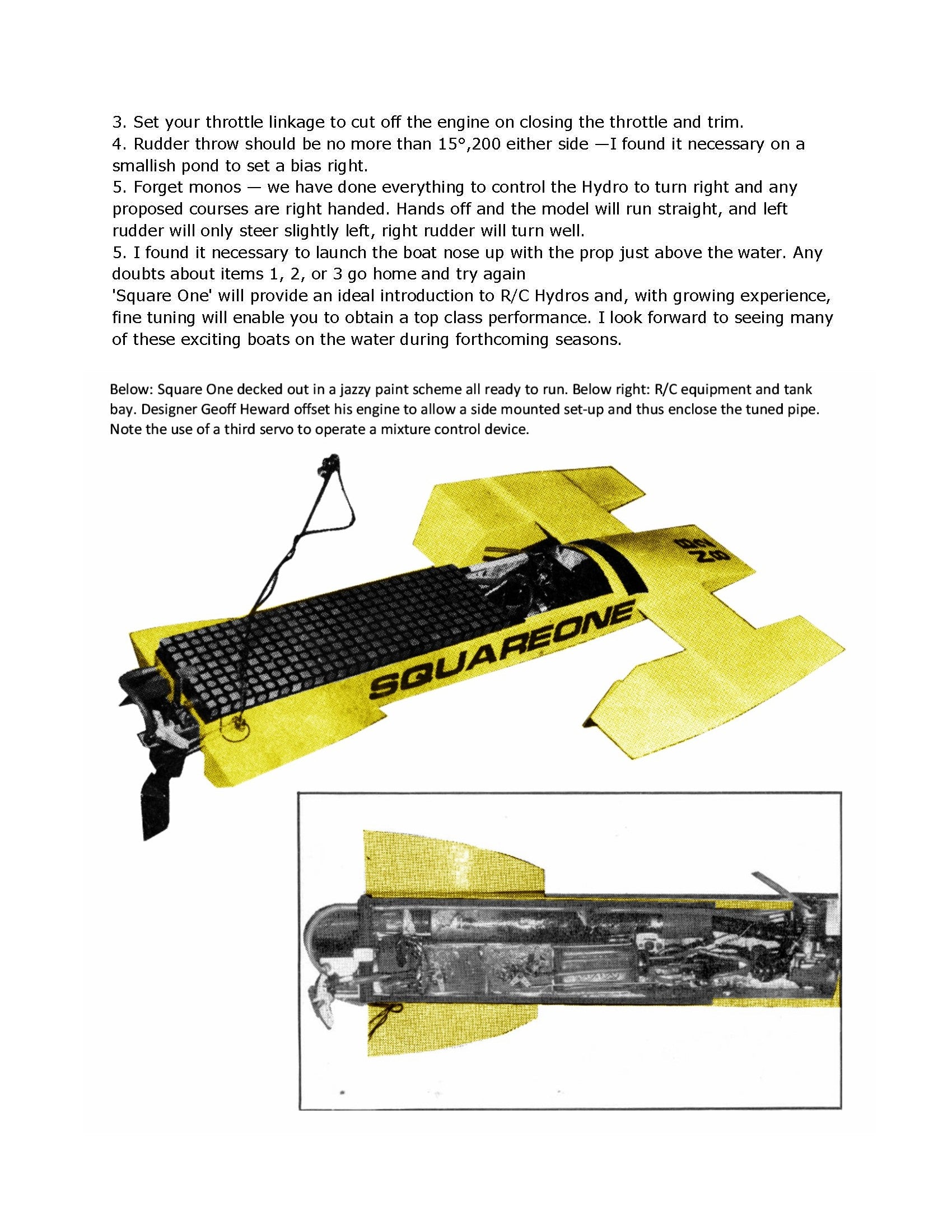

The design is built around a K & B 21 and as can be seen in the photos, I chose to lay it on it's side — which brings the carb. upright and enables the tuned pipe to lay inside the hull. All drawings show an upright 3.5 engine installation and the plan itself is not intended to be the last word in hydroplane design, but is merely the starting point for anyone wishing to try something out of the ordinary, and allow enough scope for any of your own ideas such as a wider body, etc. to be tried as required. My own hull fast evolved over a period of months — I even had 3 different hulls and 3 different types of sponsons. However, I did commit everything I tried to paper Below: Square One decked out in a jazzy paint scheme all ready to run.
