Full size printed plans Peanut Scale HONEY BEE this perfectly scale Peanut

Full size printed plans No material

HONEY BEE

Peanut purists will perk up when they peruse the plans for this perfectly scale Peanut Honey Bee, a certificated homebuilt designed by the author!

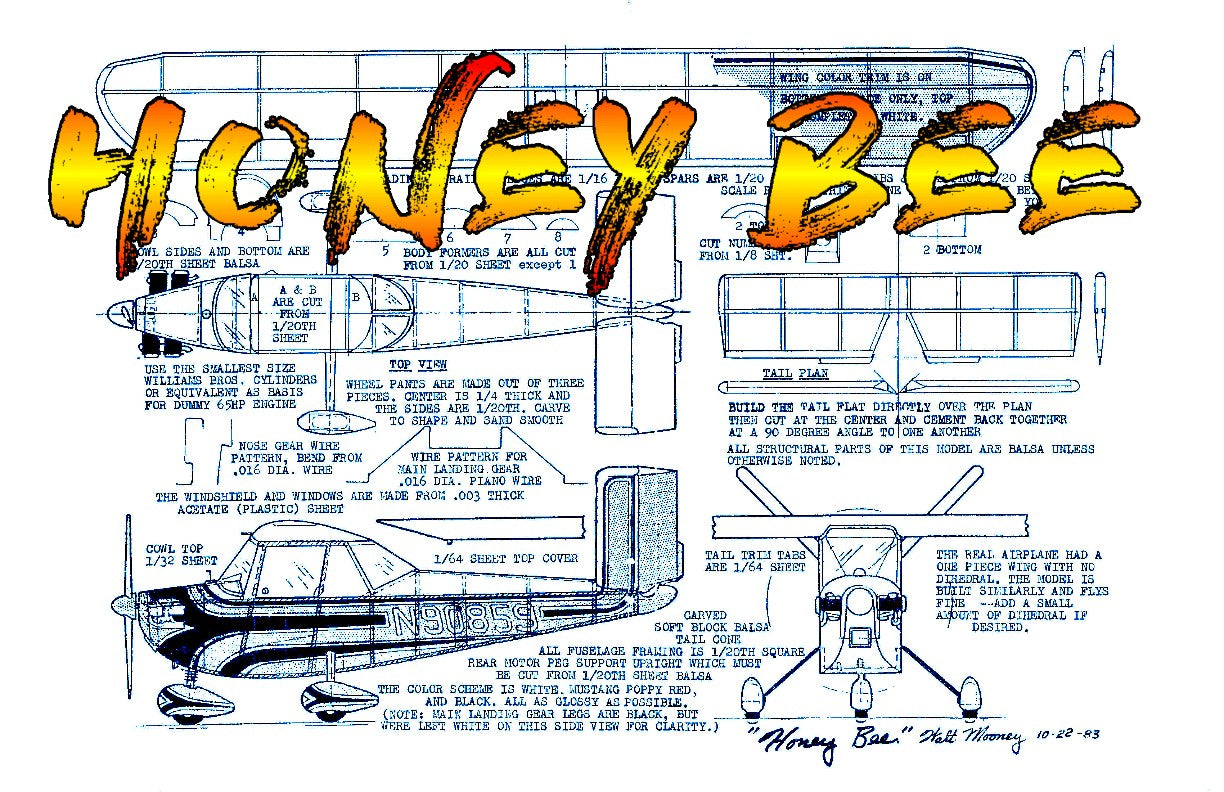

Full size printed plan on a sheet 11” x 17”

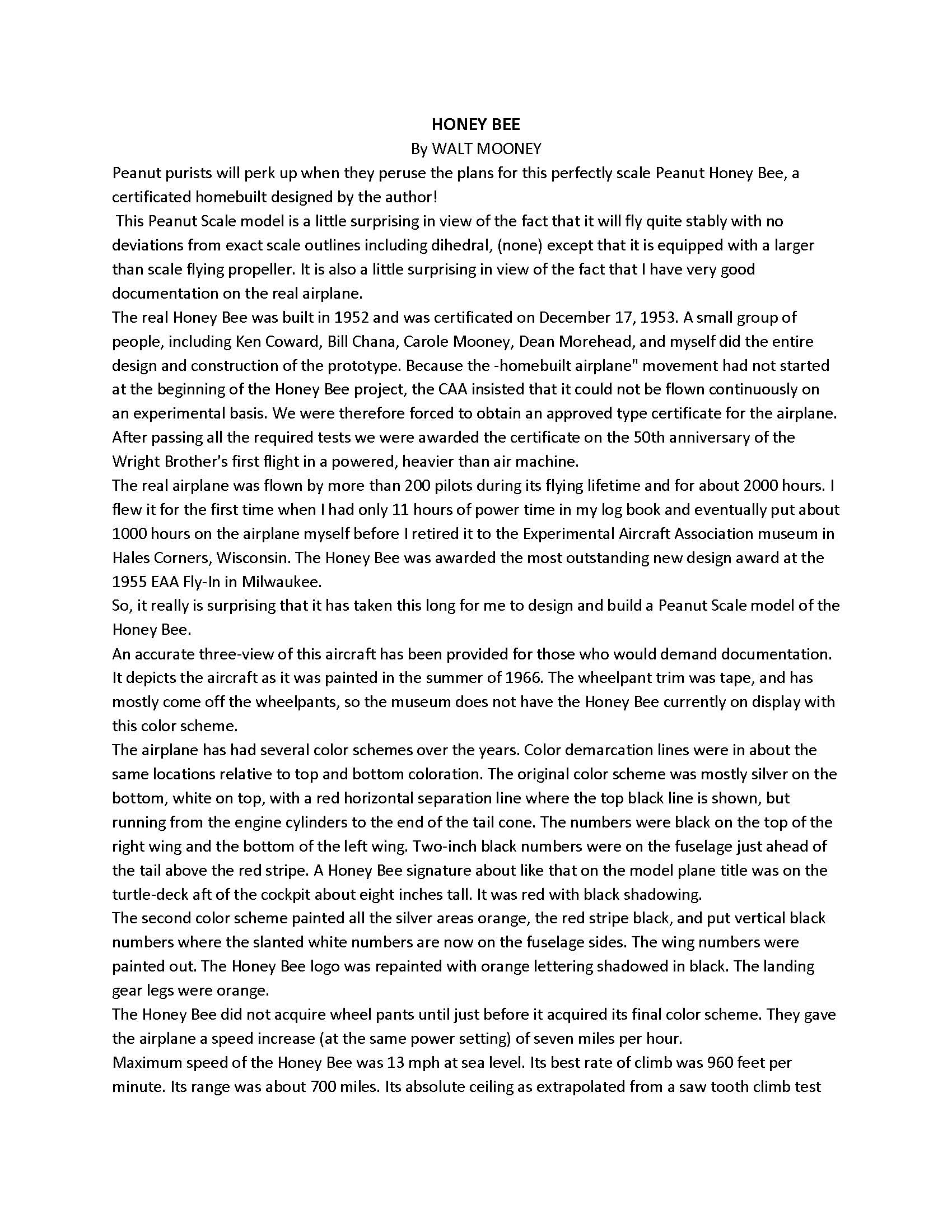

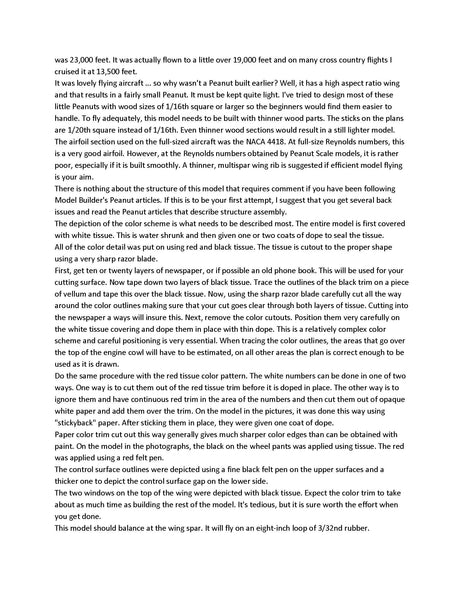

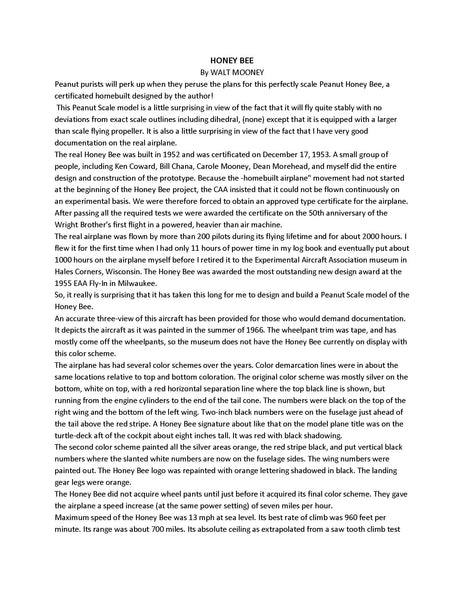

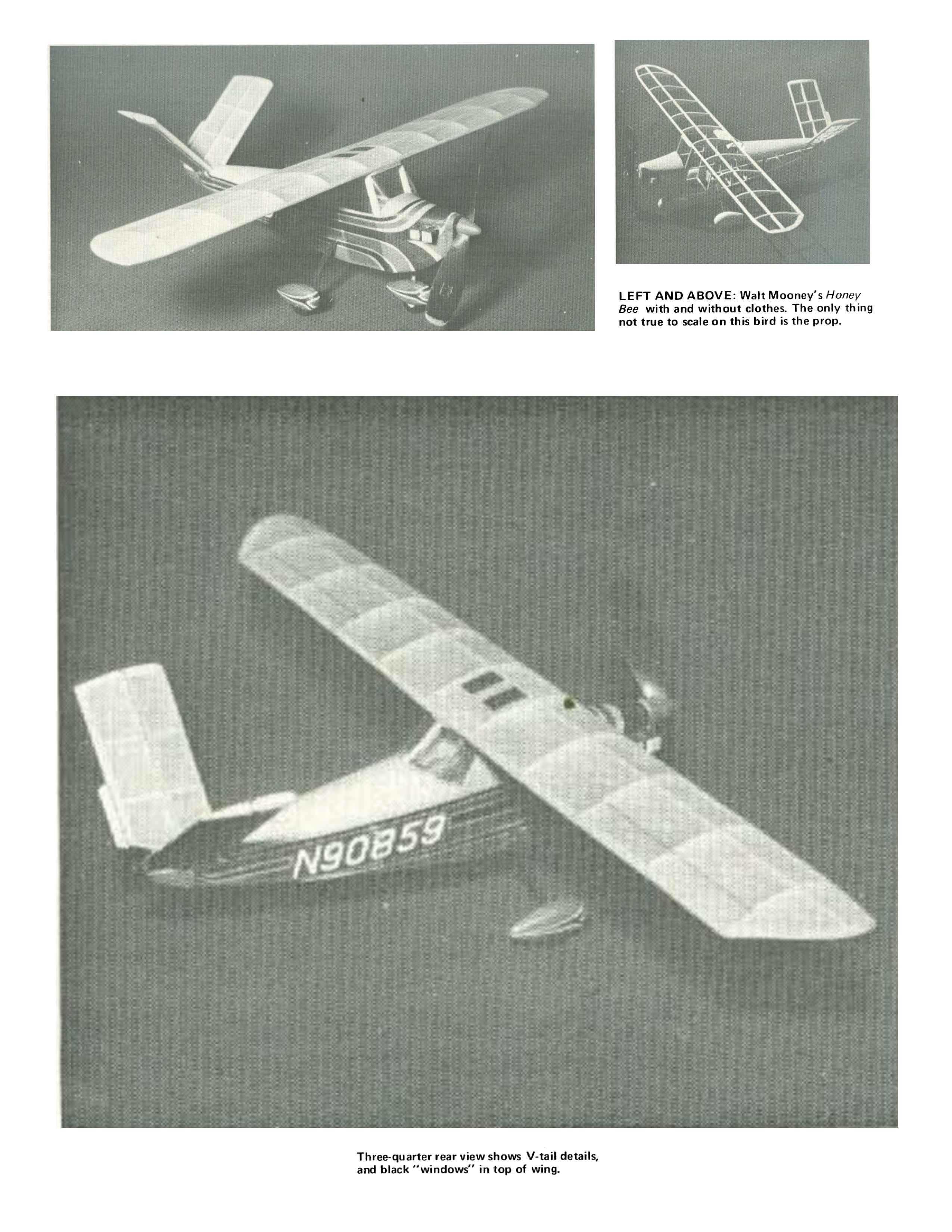

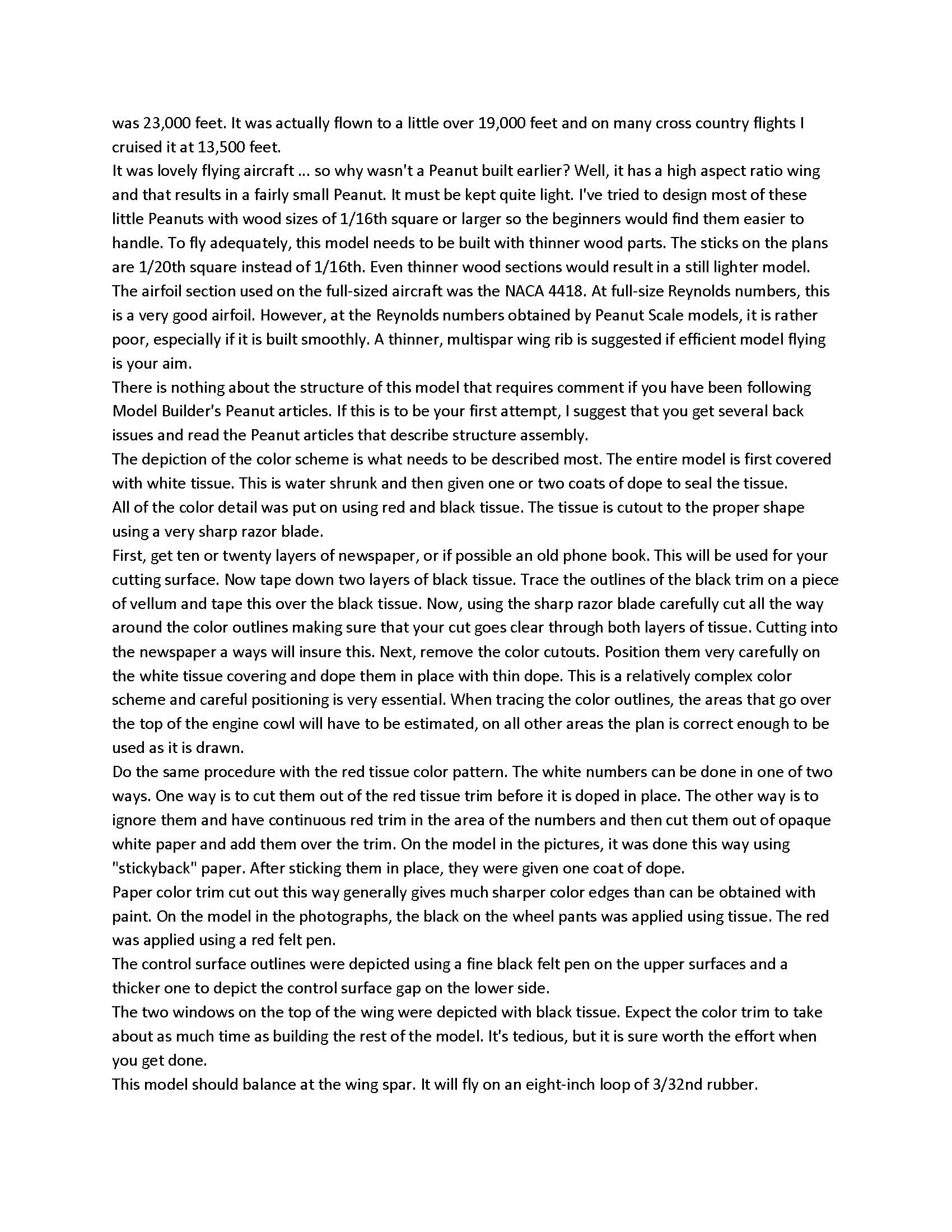

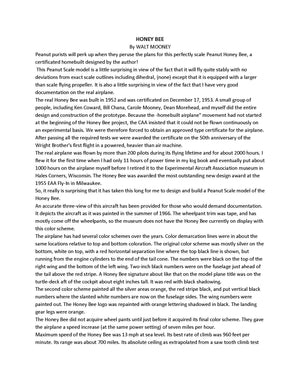

Three page article with building notes and photos

Peanut Scale

Wingspan 13”

Power Rubber

By WALT MOONEY

This Peanut Scale model is a little surprising in view of the fact that it will fly quite stably with no deviations from exact scale outlines including dihedral, (none) except that it is equipped with a larger than scale flying propeller. It is also a little surprising in view of the fact that I have very good documentation on the real airplane.

The real Honey Bee was built in 1952 and was certificated on December 17, 1953. A small group of people, including Ken Coward, Bill Chana, Carole Mooney, Dean Morehead, and myself did the entire design and construction of the prototype
